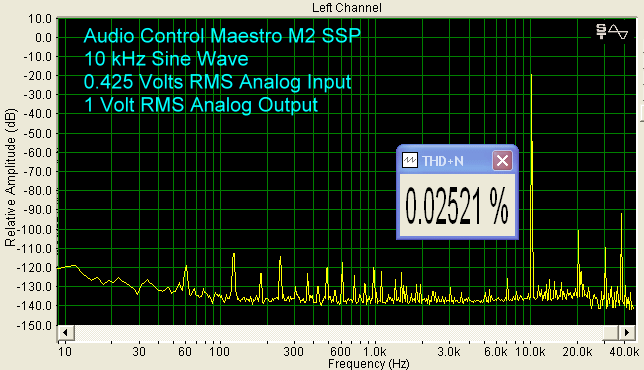

At 10 kHz, analog input, THD+N measured 0.025%.

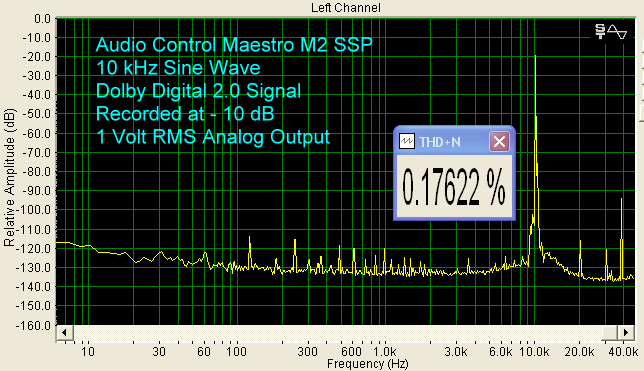

With DD, THD+N was 0.17%, using the 10 kHz test signal.

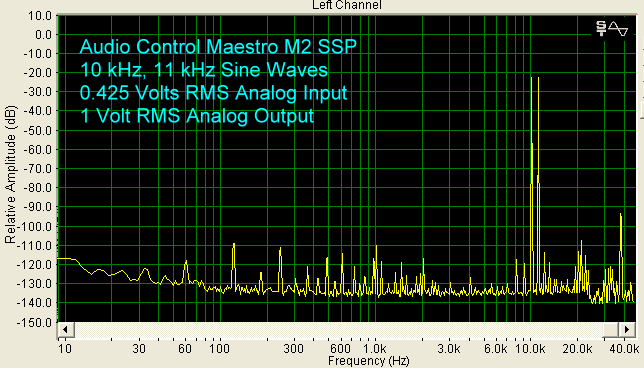

For 10 kHz and 11 kHz analog test signals, the A+B peak at - 91 dB, while the B-A peak at 1 kHz was at - 87 dB.

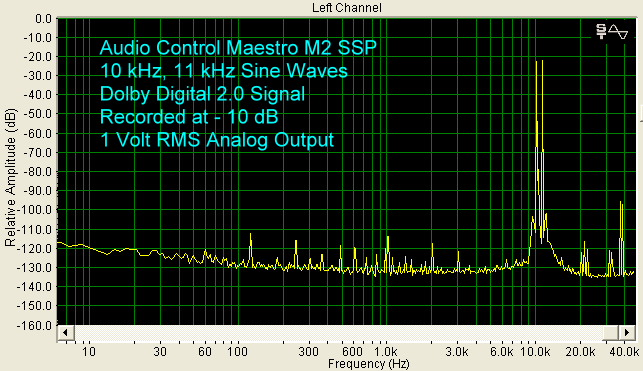

For DD, the A+B peak was at - 99 dB, and B-A at 1 kHz was at - 92 dB.

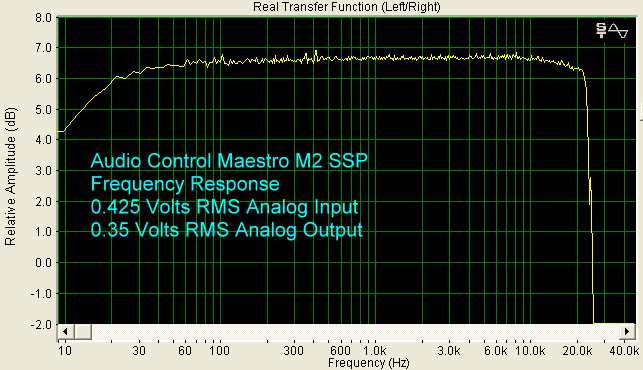

The measured frequency response, using an analog input, and Stereo Mode, was 20 Hz - 20 kHz ± 0.5 dB. The response rolled off sharply above 22 kHz.

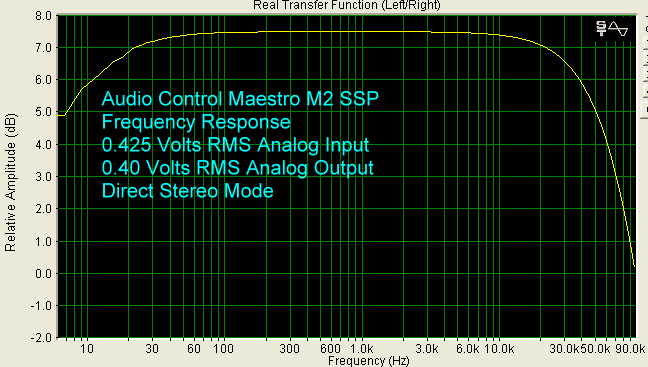

The measured frequency response, using an analog input, and Direct Mode (bypasses all digital processing), was 20 Hz - 20 kHz ± 0.25 dB, and there was less noise. The response also extends to 45 kHz ± 1 dB.
