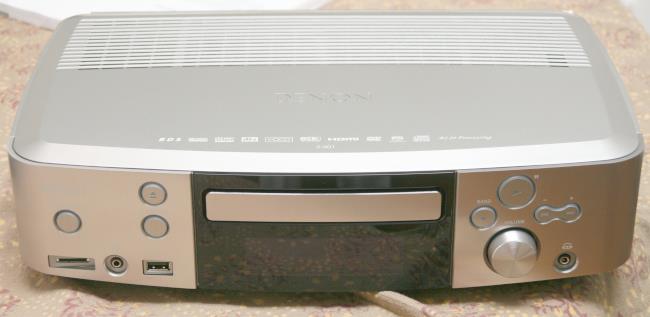

The main unit holds the DVD player, tuner, and most of the
connectors (the power amplifiers for the two speakers and the subwoofer are
in the subwoofer enclosure).

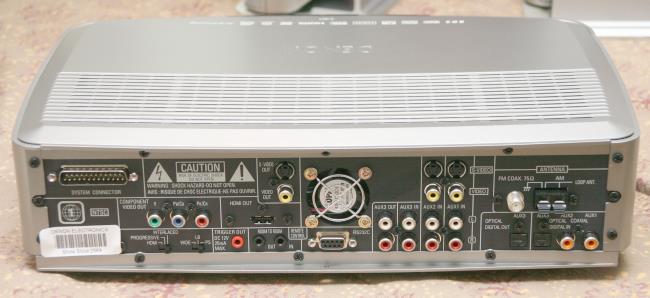

The rear panel has a lot of connections for such a compact system, even
including an S-Video input, and component video as well as HDMI outputs.
There is also an optical digital input and output if you want to send
digital audio to a larger surround sound receiver (for example, if you want
to use the S-301's DVD player with a receiver that has Dolby Digital
decoding and 5.1 outputs).
Click on the photo above to see a larger version.

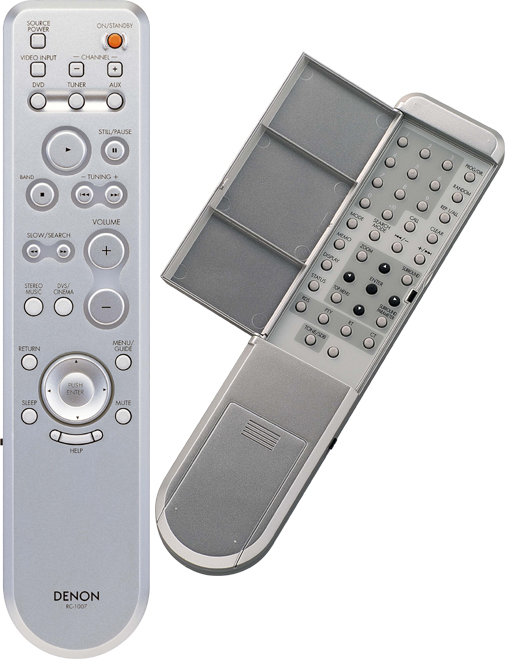

The remote control is easy to use on a day-to-day basis, because it has
only a few simple command buttons on the front. The problem I found was
that, once I connected my iPod to the S-301, the menu screen of the iPod was
no longer active. I had to use the remote or S-301 front panel controls to
select iPod music, and the OSD on the TV was necessary to see what was going
on. The iPod connector is great, because it recharges the iPod while I use
it, but since I want to put the system on my bedroom dresser - and I don't
have a TV in the bedroom - I would like to be able to see the iPod menu
selections on the S-301 front panel.
As a result, I ended up using the
stereo analog outputs of the iPod connected to one of the stereo inputs on
the S-301. It still sounded good, and I was able to now use the iPod menu
screen, but the iPod doesn't get recharged. (Also, not all the options on
the remote work with the iPod connected. Hey guys, iPod is BIG! Make the
system work better with them, and not need a TV.)
